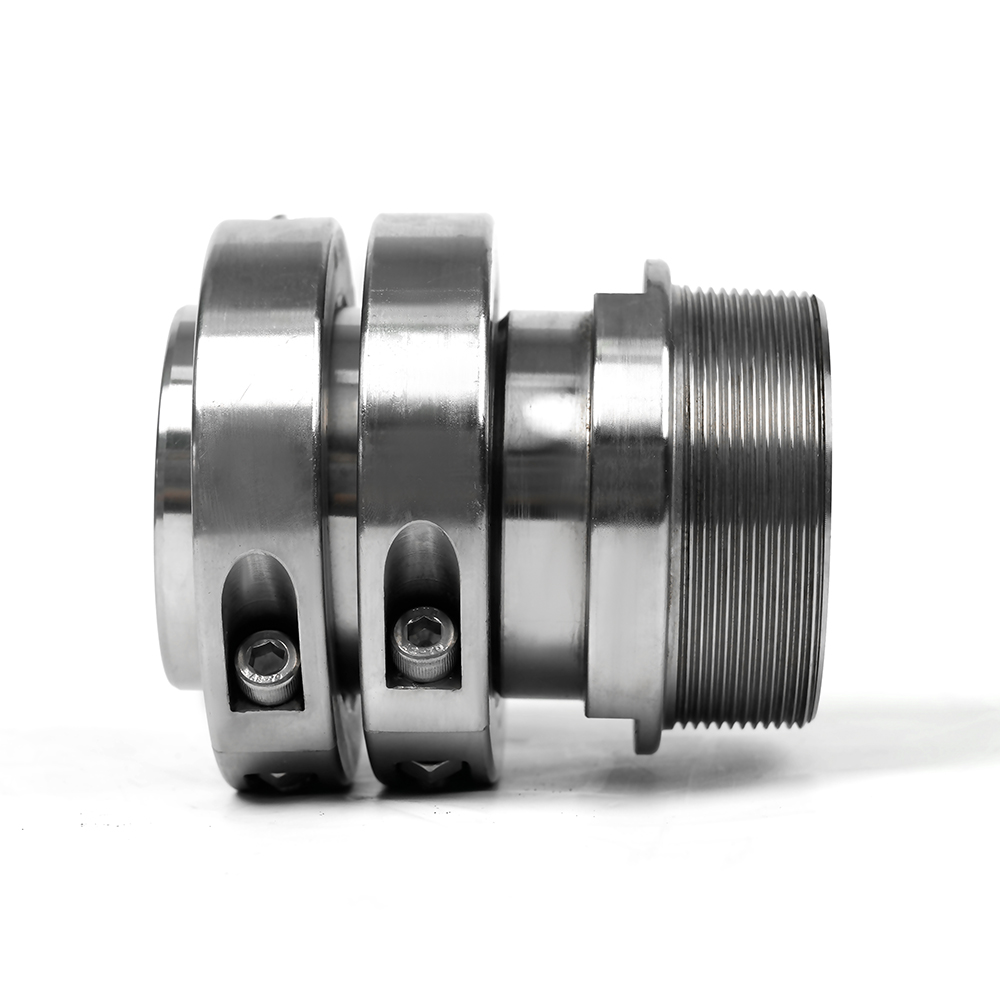

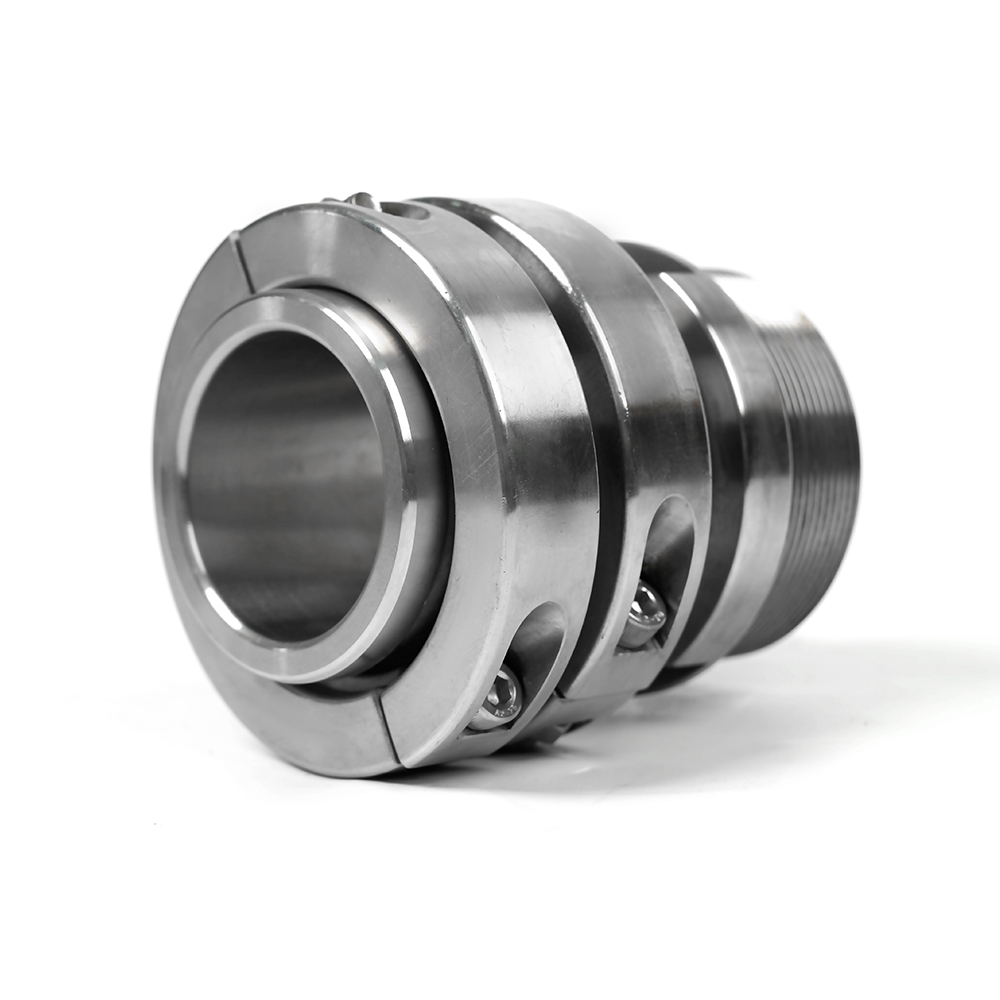

Die Gewindeabbaukupplung verbindet mit a Schlauchklemme , während das andere Ende über a mit Minenausrüstung verbunden ist Gewindemechanismus.

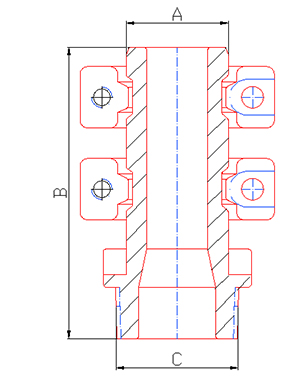

| Punkt Nr. | Din/mm | Dia | A/mm | B/mm | C/mm |
| / | 32 | 1,25 " | 33 | 114 | 1,25 "BSPT |
| 40 | 1,5 " | 40 | 114 | 1,5 "BSPT | |
| 50 | 2 " | 52.5 | 118 | 2 "BSPT | |
| 65 | 2,5 " | 66.5 | 124 | 2,5 "BSPT | |
| 80 | 3 " | 77 | 127 | 3 "BSPT | |
| 100 | 4 " | 104.5 | 79 | 4 "BSPT | |
| 125 | 5 " | 125.5 | 184 | 5 "BSPT | |
| 150 | 6 " | 152 | 184 | 6 "BSPT | |
| 200 | 8 " | 203 | 197 | 8 "BSPT |
* Materialien und Herstellungsprozesse können auf Anfrage angepasst werden.
* Andere Anforderungen (wie Arbeitsdruck, Burstdruck usw.) können bei Bedarf ebenfalls angepasst werden.
